Description

Output specifications 110VAC, 220VAC. DC rated input voltage 25.2V, DC voltage input range 17.0VDC-25.5VDC, using DC input low voltage protection, DC input overvoltage protection, AC output short circuit protection, inverter overtemperature protection, power-on self-test, front and rear stage isolation, no-load Input current 110VAC/0.5A MAX. 230VAC/0.6A MAX. The rated output power is 1200W, and the output voltage waveform is sine wave.

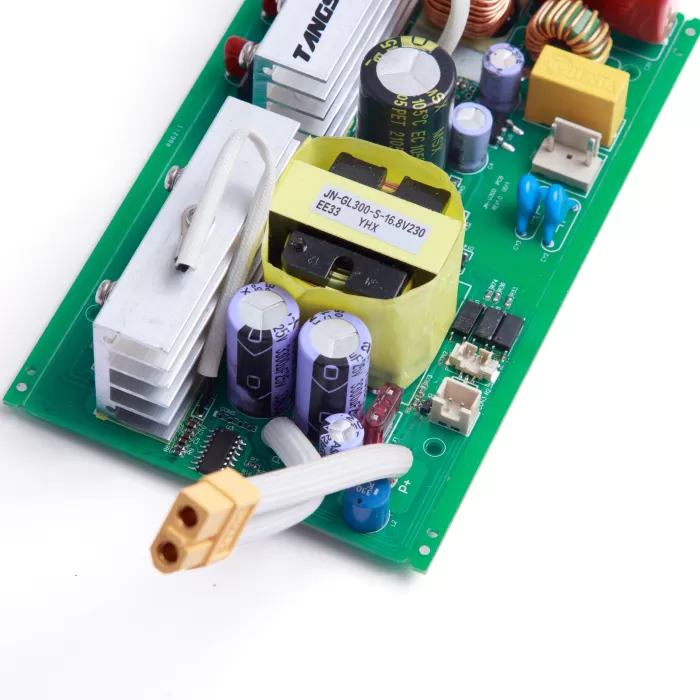

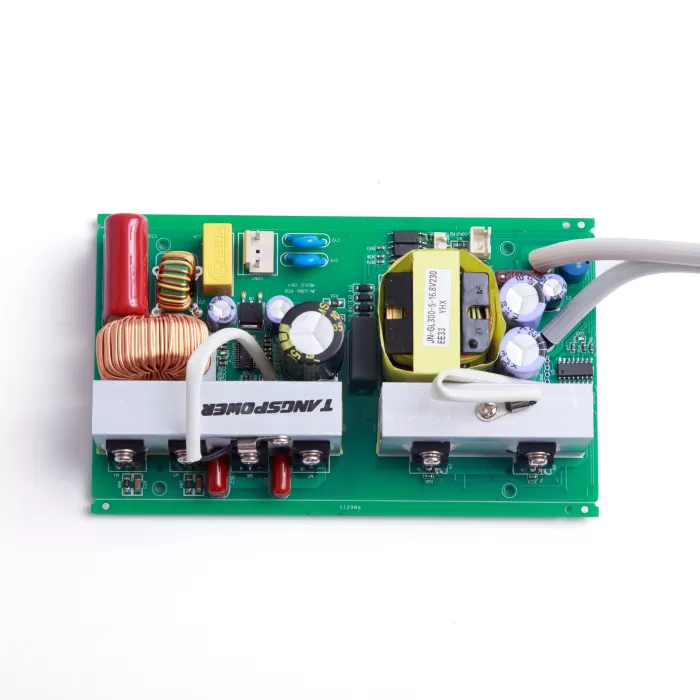

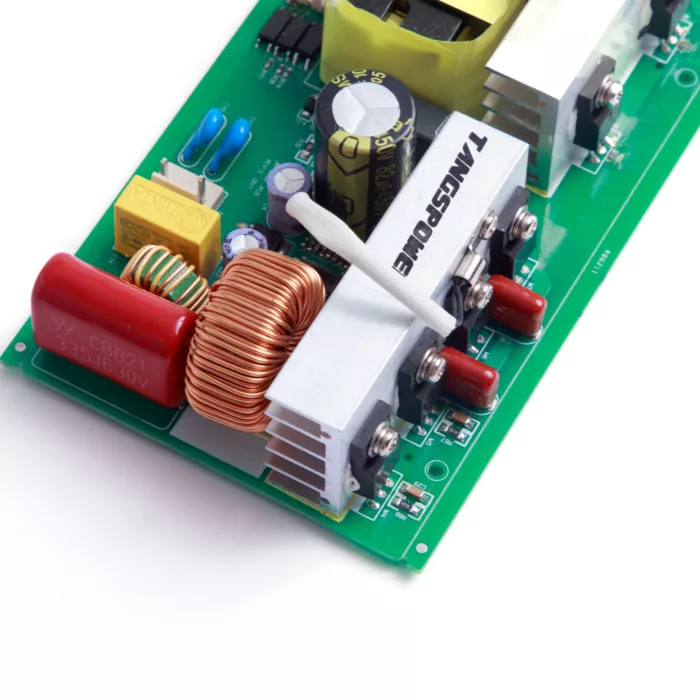

model:	1200W inverter board
place of production:	Shenzhen, China

More parameters

The Challenge!

features

A. Power on self test, under-voltage protection alarm, over-voltage protection alarm, fan control.

B. Converts the direct current in the battery into alternating current or other forms of direct current.

C. inverter over temperature protection, AC output short circuit protection, the use of ambient temperature -10 degrees Celsius / +45 degrees Celsius.

D. sine wave inverter is highly efficient, energy saving and fast protection.

E. has fast dynamic response, good control performance and good electrical performance indicators.

Sustainable, Reliable & Affordable Energy!

APPLICATION

Sine wave inverters are used in new energy utilization, solar power generation systems, portable energy storage systems, home energy storage systems, and UPS uninterruptible power supply systems.
